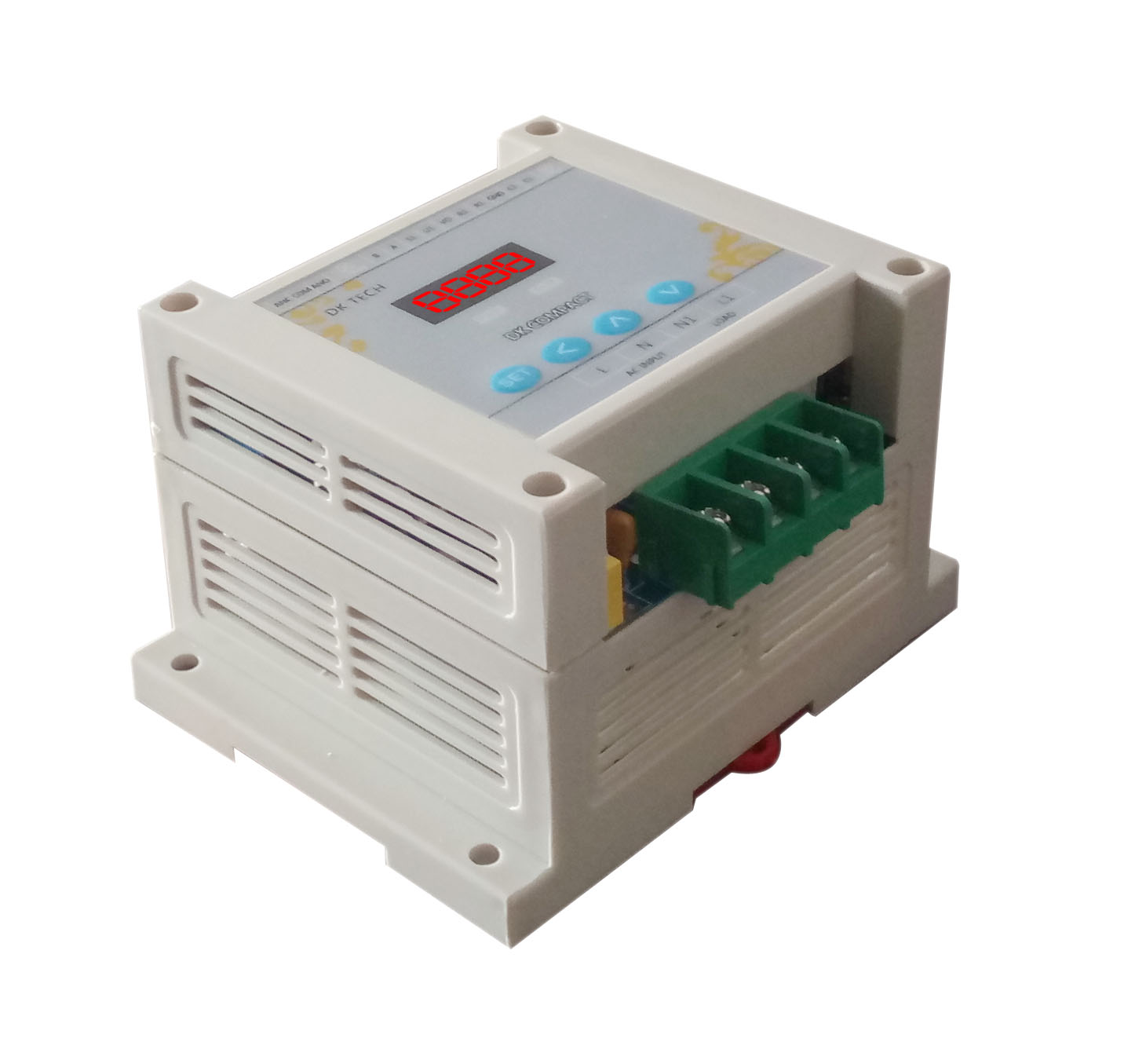

DK compact power regulator and small power controller

4-20mA, 0-10mA, 0-5V, 0-10V, 1-5V, 2-10V, PWM and other standard signal input.

control mode

The integrated technology of voltage regulation phase shifting and zero-crossing cycle power regulation can realize closed-loop control of constant current, constant voltage and constant power, and can rectify.

load

Suitable load types: all kinds of pure resistive load and various inductive load, IR infrared lamp and other loads. Various DC power supply, electrolytic power supply and electroplating power supply

protection system

Electronic overvoltage and overcurrent protection

communication

Standard MODBUS RTU communication

Cooling mode

Self cooling

Other detailed parameters

DK COMPACT series true RMS controller, adjustable power and voltage regulation, rectifier. Imported components, high-precision digital circuit control, long service life, safety and reliability; digital display, can modify the control parameters locally more convenient; support multiple input signals; with slow start, slow stop function; optional Modbus RTU communication; optional true RMS voltage and current display.

Products are widely used in stage, KTV and other lighting adjustment, single-phase motor speed regulation, rectification, heating power control and other occasions.

Input impedance: 120 ohm (4-20mA input mode)

Slow start time range: adjustable range 0-360 seconds.

Output voltage control range: input voltage 0-98%

Adjust output resolution: 0.2 degrees.

Protection action time: <20ms

Relay contact capacity: 250V AC 2A

External voltage control function: voltage regulation (internal) / 0-100%

Insulation impedance: minimum 20 M 500V DC

Insulator strength: 2000V AC 1 minutes (220V) 2500V AC 1 minutes (380V)

Current limiting function: adjusting range 20-110%

Over current protection system: electronic type protection

Sketch map of selection size

Length * width * height 115.5mm*90mm*72.3mm
